NEP-2000BPH Auto Bottling Line

NEP-2000BPH Automatic Water Bottling Line

Capacity Scale of Bottle: 250—2000ml;
Capacity of Production: 2000Bottles/Hour
Drink Kind: Mineral Water, Pure Water, Fruit Juice, Wine and other no-gas liquid.
Material: Preform, Cap, Raw Water, PVC Label, Roll PE film

Capacity Scale of Bottle: 250—2000ml;
Capacity of Production: 2000Bottles/Hour
Drink Kind: Mineral Water, Pure Water, Fruit Juice, Wine and other no-gas liquid.
Material: Preform, Cap, Raw Water, PVC Label, Roll PE film

PROJECT MAIN MACHINE :

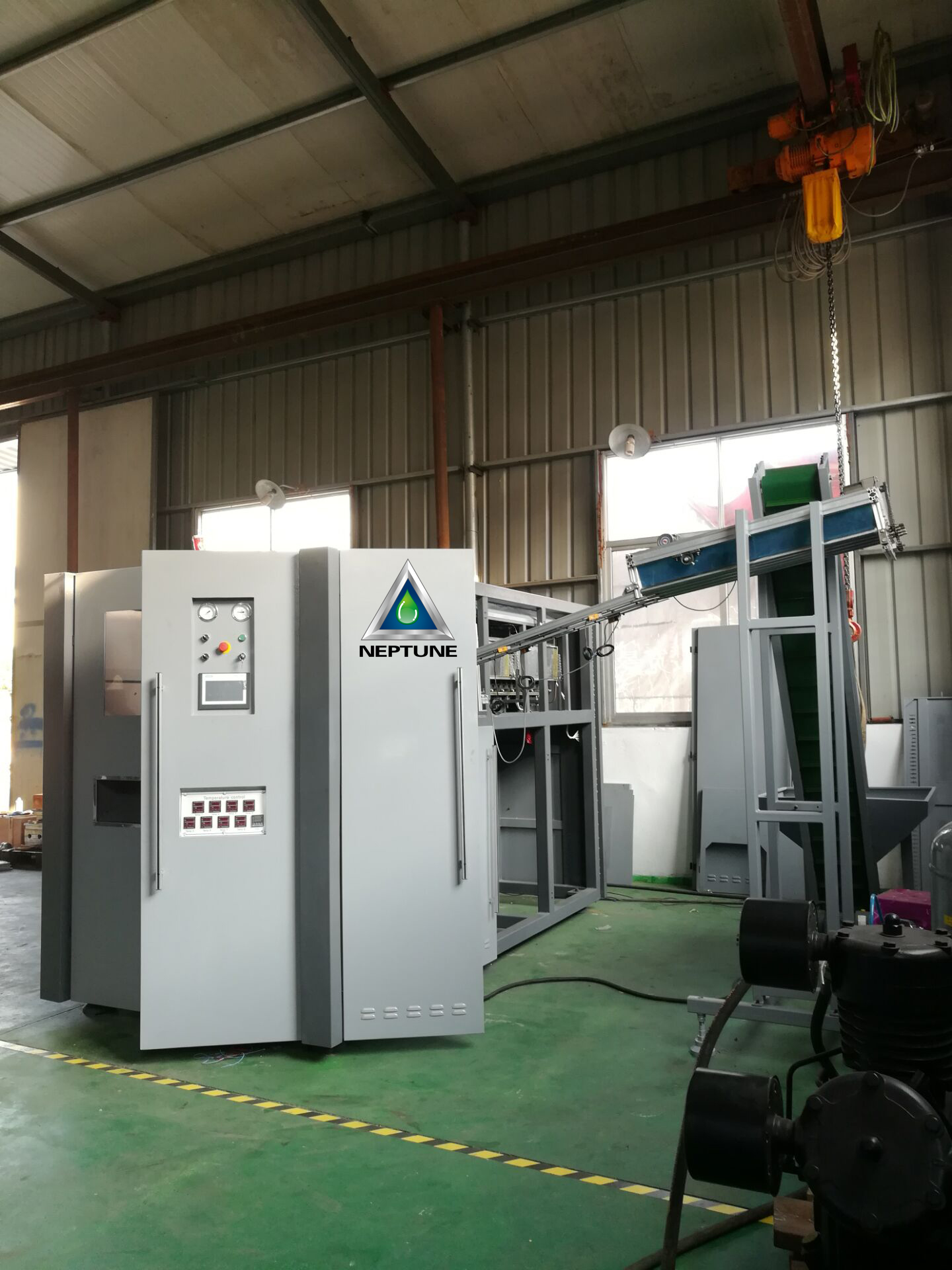

2000BPH AUTOMATIC BLOW MOLDING MACHINE
RO-1000I(2000L/H) RO WATER TREARMENT MACHINE
4000BPH PET BOTTLE WASHING-FILLING-CAPPING MACHINE

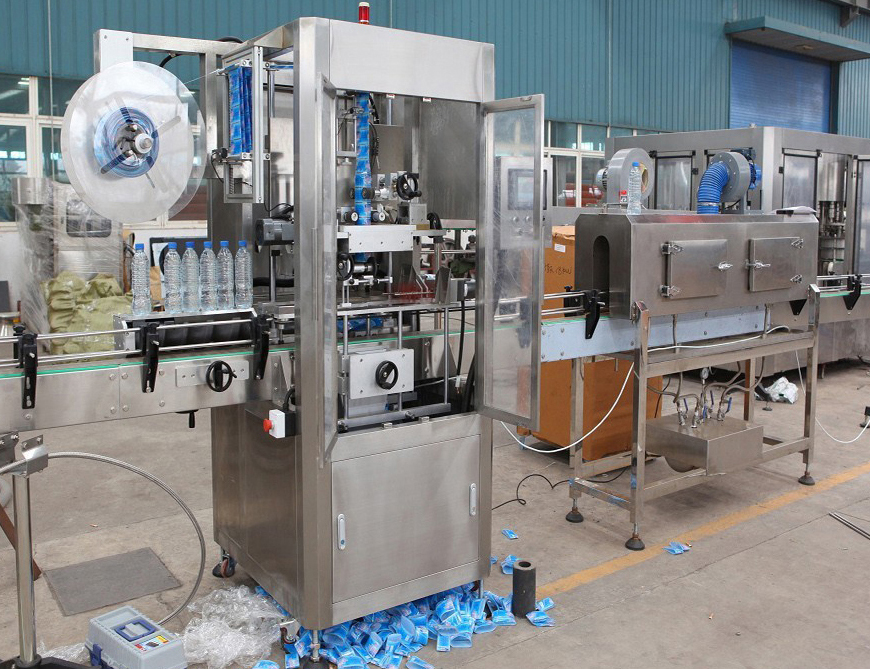

AUTOMATIC SLEEVE LABELING MACHINE
VIDEOJET 1220 INK JET PRINTER

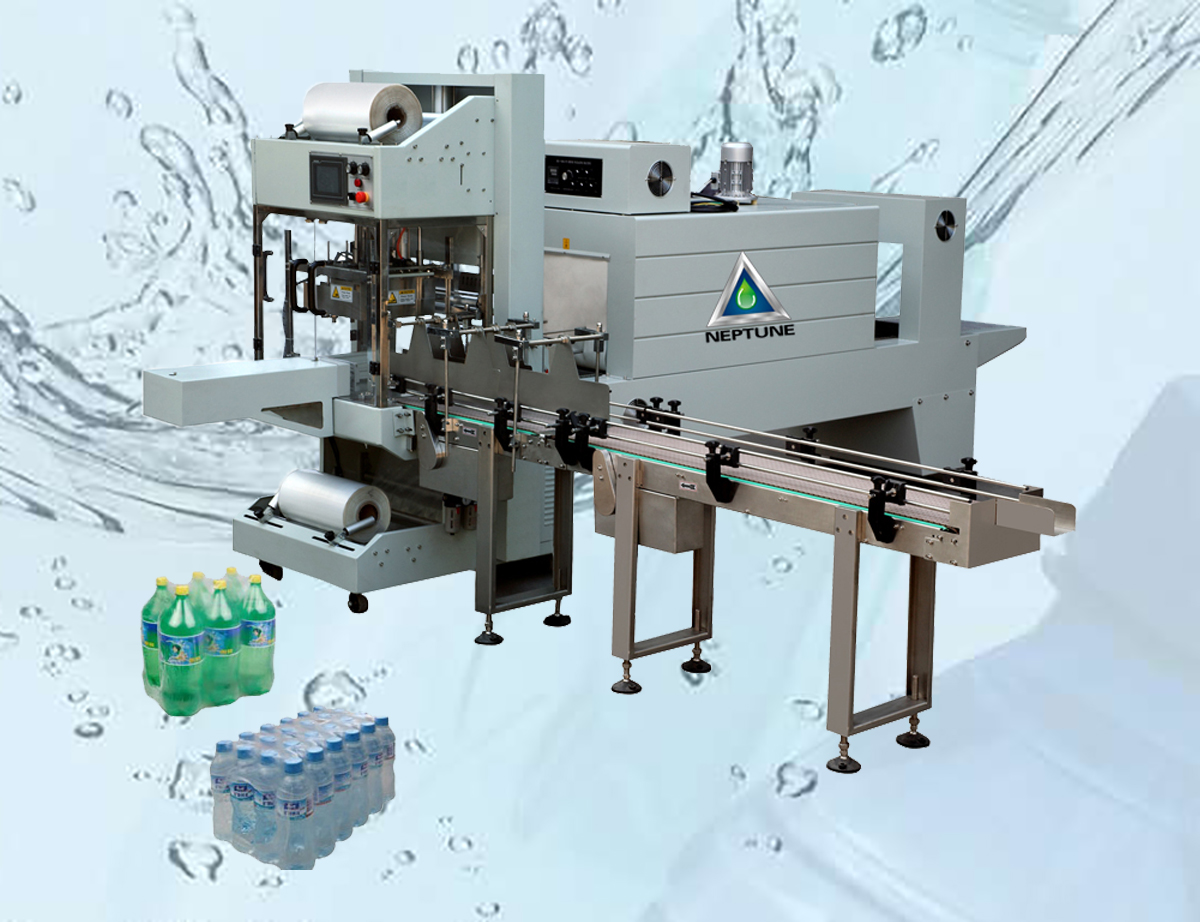

AUTOMATIC THERMO SHRINKAGE PACKAGE MACHINE

It included mainly 6 part machine. Firstly, the bottle blow molding machine, It is use to heating preform and blowing preform into idea shape plastic bottle according the bottle mold. Secondly, the water purification machine, it is use removed all suspended, substance , bacteria and virus. Produce bottled water standard pure water. Third, the washing filling capping machine, it the key machine use to washing plastic bottle, filled water into the bottle and capping the bottled water. Fourth, the labeling machine, it is use to labeling the bottled water. Fifth, the date printing machine, it is use printing produce date on bottled water. Sixth, the wrap packing machine, it is use to wrap 6/12/24 psc bottled water in one bag, then heating the film to got it tight the package.

Bottling Process

2000BPH Auto Water Bottling Plant  is love by most of our customer. It has advantages, such as high automation level, compact structure, beautiful appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity and others. It is mainly suitable for bottling of round or square polyester bottles. According to the demands of different specifications of users, it is only changed a little in design to meet the user’s demands.

Factory Layout of auto water bottle filling line

Preform automatic loading by the preform unscrambler, after heating it will blowing into plastic bottle by the blow molding machine,and send out to the air conveyor system of the 3-in-1 filling machine which collect washing bottle,filling pure water into bottle and capping the bottle, the product  is driven by transmission motor. Sleeve labeling machine will  automatic put the PVC label in the right place of the bottle water and shrinking by the shrink tunnel, Wrap shrink packing machine will finished the last step which use PE film to packaging 6/12/24 bottles water into one packaging and will convenient for customer to carry.

Professional bottle design for bottled water

1.Most of world top brand’s water bottle drawing for choice.

2.Professional bottle design for customer. 100% Accuracy. Avoid structure mistake. Make sure final bottle beauty. Save the error mold cost.

Bottle Design
Really Produce Out Bottle

Bottled water label design

Professional bottled mineral water label designer, copy really local mountain picture and modify into idea label design of bottled water. Once it put on bottled water, popular love by local people.


Good quality bottle water filling and packing machine.

Global Install

  1. Offer China engineer oversea install even in Iraq.

2. Aboard installation branch over 10years experienced.
