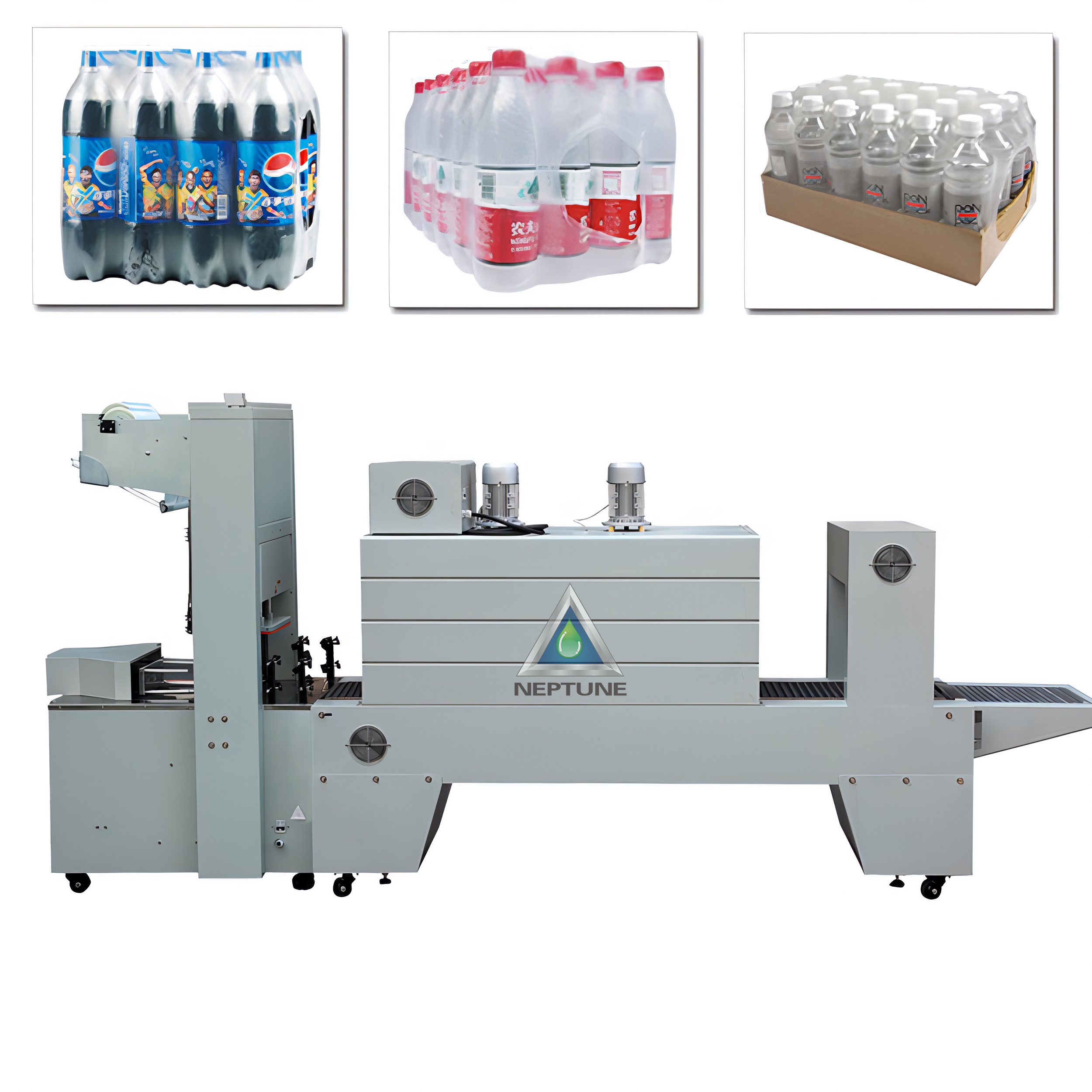

Bottle Water Shrink Wrap Packaging Machine
The shrink wrapping machine for bottles. Made use of the PE,POF,PP,PVC etc as packing material as materiasl. The film will shrink while face hot temperature.
Water bottle shrink wrapping machine will wrap film on a lot bottled water and got tight all bottled water after go through steam tunnel.
Wrap Packaging Machine Mainly included two part equipment:
1. PNEUMATIC SLEEVE WRAPPER
2. JET THERMAL SHRINK PACKAGING MACHINE
| Power | 20KW |
| Packing speed | 480psc Package Per Hour |
| Packing dimension | L250×W60×H140mm To L450×W270×H330mm |
| Film thickness | 0.03-0.25mm |
| Machine Dimension | L3520×W830×H1980mm |
| Machine Weight | 640kg |

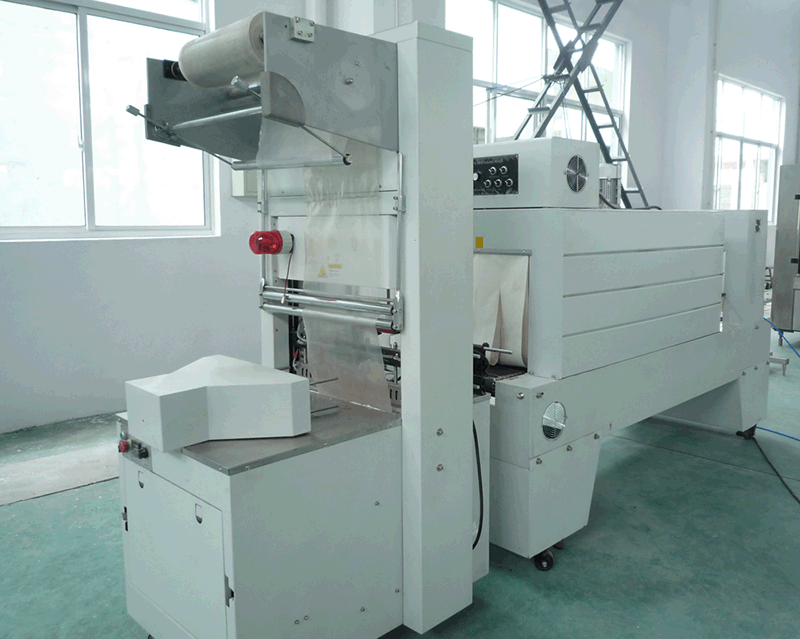

1. PNEUMATIC SLEEVE WRAPPER
Its structure is simple. Its function included pushing bottle, sealing bottle , cutting film , package in one . This package bottle machinery have a lot advantages. Like simple operation, quick sealing, sealing effect is beautiful and durable.
It is suitable for working with Jet thermal shrink packaging machine. It uses the PE,POF , PP , PVC etc as packing material. The object will go into the tunnel directly after sealing and cutting ,so the work efficiency was heightened and the electricity consumption was reduced.
The main part of machine is imported from international famous company, the motion-performing parts adopt high grade pneumatic component, so the operation becomes very simple, the capability is stable, the malfunction seldom happen, the lifetime is long, it can work continuous for a long time, so it can meet the requirement for large production.
One trait of the machine is ,the machine adopts AC motor for straight operation. The object packaged by this machine, have follow advantage: good looking ,neatness, dustproof, dampproof, prevent from broken, easy for carry and store. The consumption of the product is lowered, and possessing package cost advantage. The machine adopts advanced technician to protect the operator.
2. JET THERMAL SHRINK PACKAGING MACHINE
Jet thermal shrink packaging machine has good effect in saving course and the shrinking.The principle of this machine is : two pieces of large impeller circumgyrate with high speed,to make the hot air that produced by the electric thermal pipe very even,then the hot air jet from every hole of inner container to shrink these objects which through the tuunel completely ,and the shrink effect is pretty good.
If you have used the Far-infrared radiate machine ,you will find there are some terrible disadvantages with it,for example,when to shrink some gassiness drink’s bottle,like spring,Coca Cola.
It is interfered by infrared ,the neck of the plastic bottle will become sunken and wry,when to shrink some strip things,the shrink effect is not good,the surface of the film will not be smooth,when to shrink something with strange shape,the film will broken very easily,but these problem will be solved by the jet machine.
Because the hot air jet straightly,and it will not disturb the packing film,so the packing effect is very good,and the packaging object is very saft,don’t need worry about that the packaging object or the film will be burned by the heating pipe.The heating mode is inner circulatory,loose less heat,increase the heat effect,matched with precise brainpower meter decrease the temperature error rate to the lowest degree,the temperature of every jet hole is the same,so it needn’t to adjsut the partial temperature.
