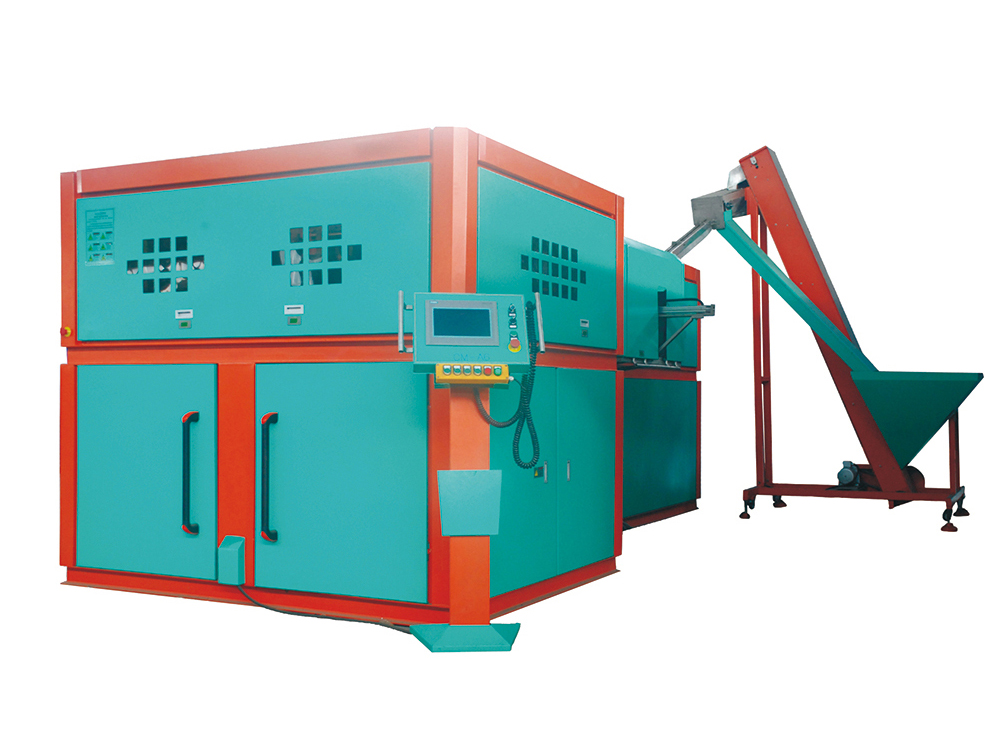

6000BPH Bottle Making Production Machine

Six automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, and hot fill bottle etc.

Neptune blower advantage

  1. Reduce bottle costs by 25-50%
  2. Frees you from dependency on vendor deliveries, storage
    complications and lack of inventory
  3. Production: 6000 bottles per hour
  4. Handles multi-sized and shaped preforms
  5. Produces bottles from 150ml to 2000ml through change mold
  6. Easy change mold fast
  7. Strong and Structurally stable design
  8. Heating power saving
  9. PLC touch screen easy control the machine

Technique Parameter

Valve SMC
Cylinder SMC
PLC SIEMENS
Operating system SIEMENS
Relay OMRON
Servo motor National SCHNEIDER

Main parameter:

Depend on bottle design 6000PCS/H
Body diameter ≤90mm
Height ≤325mm
Neck diameter 28mm-30mm
Cavity 6cavities
Mold thick 240mm
Electrical source power 380v 3Phase /220v 3Phase  50/60HZ
Rated Power 53kw
Really use power 24kw
LP air compressor 1.6m3/min 1.0MPa
HP air compressor 3.2m3/min 3.0MPa x 2sets
Air dryer 6.0m3/min 3.0MPa
Cooling water 5HP
Main machine size L*W*H 5000*2800*2200mm
Weight 4800kg
Preform loading L*W*H 2300*1500*2480mm
Weight 350kg
Resin available PET

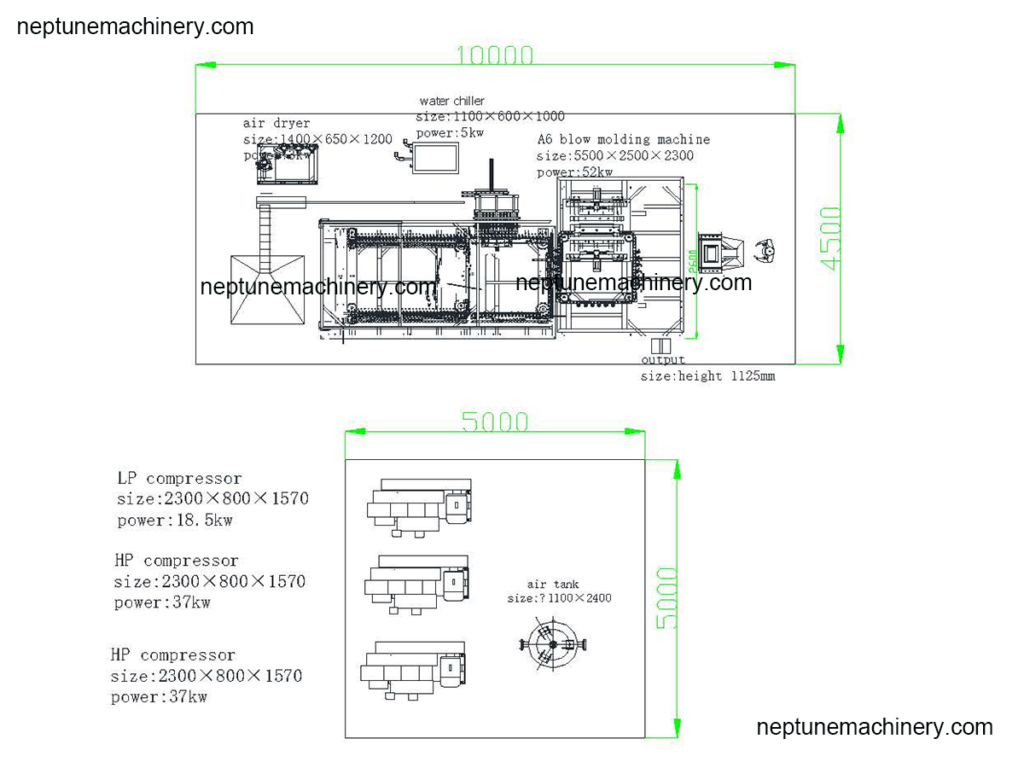

Layout


Video of 6000BPH blow molding machine


Equipment list

Automatic Blow Molding Machine BM-A6
High Pressure Air Compressor Unit 3.2m3/min; 30Kg
Low Pressure Air Compressor 1.6m3/min; 10Kg
HP Air Dryer 6.0m3/min 30Kg
HP Air filter 6.0m3/min 30kg
HP Air Tank 1.0 m3/min 30Kg
Mould Chiller 5HP
LP air filter 2.0m3/min; 10Kg
Spare parts /
Air tube /
Blow Mold Six cavity
