6000BPH PET Bottle Blow Making Machine

automatic blow molding machine 6cavity

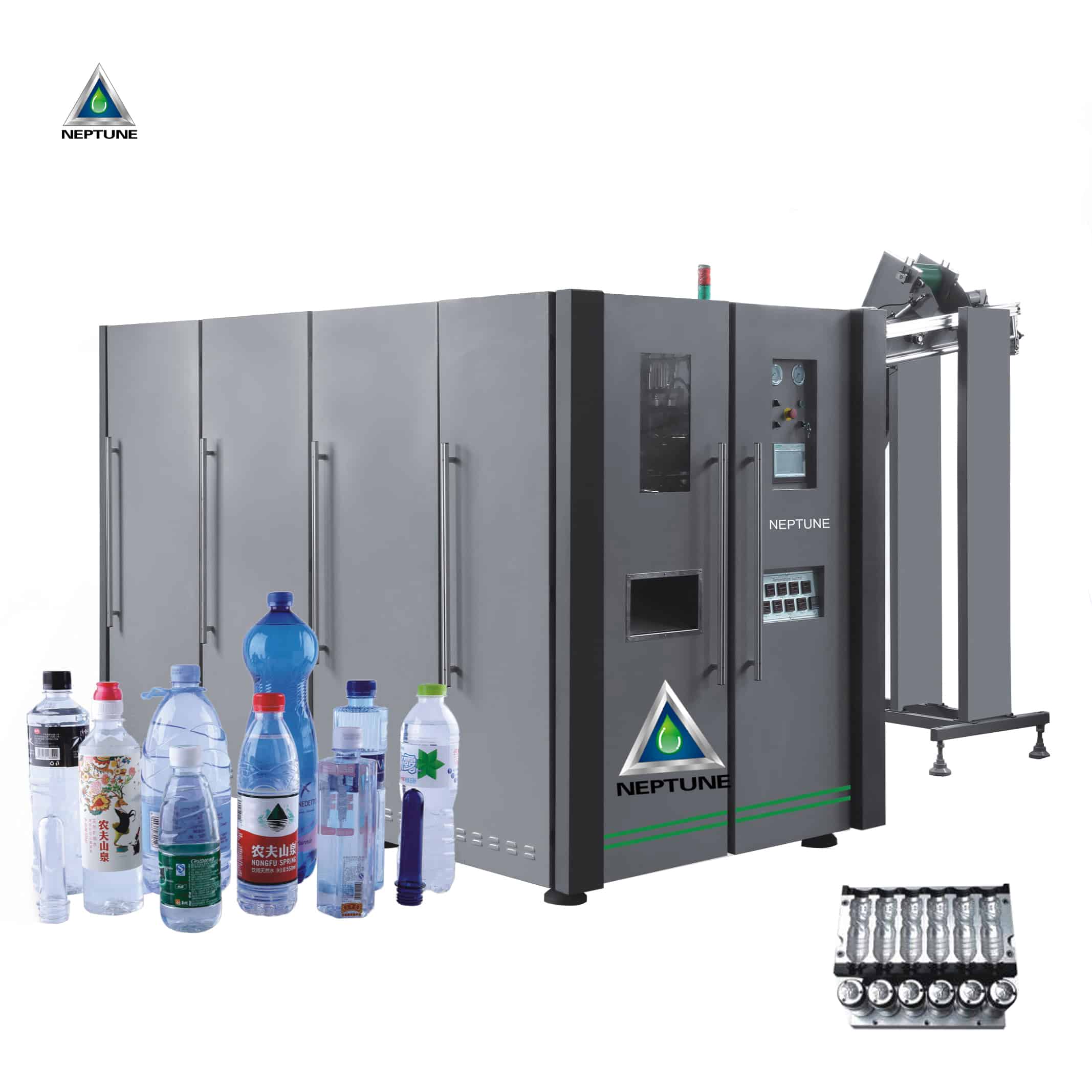

Bestselling 6000BPH PET Bottle Blow Machine

This automatic PET Plastic Bottle blow machine is the 2th step of pet bottle making machine. It will blowing pet preform into pet plastic bottle according the mold. It can through change mold to produce different shape and volume plastic bottle in one machine.

Capacity Speed: 6000 bottles per hour depend on 500ml bottled water Product

Bottle Volume: 200ml to 2 liter

Technique Parameter of blow molding machine:

Body diameter≤90mm
Height≤325mm
Neck diameter28mm-30mm
Cavity6cavities
Mold thick240mm
Electrical source power380v 3Phase /220v 3Phase  50/60HZ
Rated Power53kw
Really use power24kw
LP air compressor1.6m3/min 1.0MPa
HP air compressor3.2m3/min 3.0MPa x 2sets
Air dryer6.0m3/min 3.0MPa
Cooling water5HP
L*W*H5000*2800*2200mm
Weight4800kg
L*W*H2300*1500*2480mm
Weight350kg
/PET

Video of the 6000BPH Bottle Making Machine

Equipment List of the Complete 6000BPH Bottle Blowing Machine

Automatic Blow Molding MachineBM-A6
Auto Preform LoaderBM-A6
High Pressure Air Compressor Unit3.2m3/min; 30Kg
Low Pressure Air Compressor1.6m3/min; 10Kg
HP Air Dryer6.0m3/min 30Kg
HP Air filter6.0m3/min 30kg
HP Air Tank1.0 m3/min 30Kg
Mould Chiller5HP
LP air filter2.0m3/min; 10Kg
Spare parts/
Air tube/
Blow MoldSix cavity
